Articulating Cranes

50/345

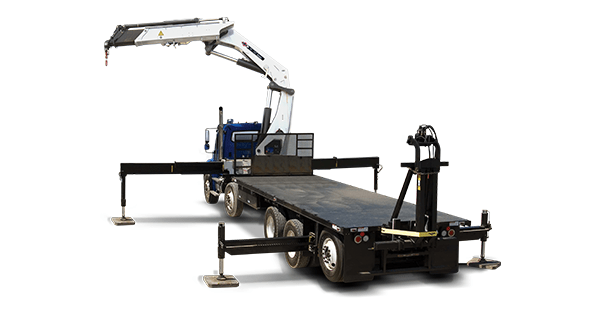

IMT® 50/345 articulating cranes feature hexagonal booms for greater strength and stability while providing a maximum horizontal boom reach of 70 ft (21.4 m) and a max lifting capacity of 22,840 lb (10,360 kg). That’s a lot of lifting power for articulating cranes that require minimal mounting space and offer the versatility to maneuver around difficult job sites.

Standard features:

  • Application-specific product offering
  • Superior lift-to-weight ratio
  • Long-reach capabilities
  • Hexagonal booms for superior reach and maximum control

Options:

  • Various stabilizer configurations
  • Double link arm system
  • Boom mounted winch
  • Floodlight on outer boom
  • Boom tip functions for hydraulic attachments
  • Oil cooler
  • Electronic Vehicle Stability (EVS) System

Find a Distributor Request a Quote

Model50/345
Crane Rating345,015 ft-lb
Crane Weight11,190 lb
Max Lift Capacity22,840 lb
Max. Horizontal Reach70'3 "

50-345_Specs
Download

50-345_Parts_99904952
Download

IMT Articulating Crane Catalog
Download

IMT Full Line Pocket Brochure
Download
