Hydraulic Cranes

10000

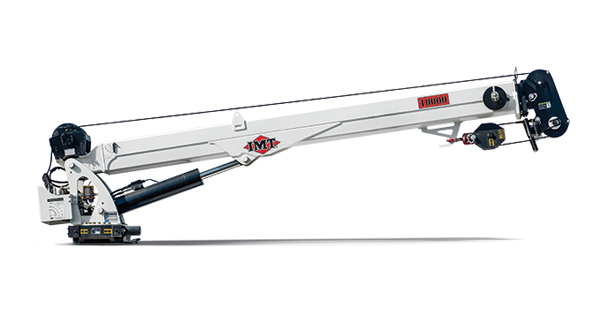

Let our telescopic cranes take on the heavy lifting. The IMT 10000 Series telescopic crane has a maximum lifting capacity of 10,000 lb (4535.9 kg) and a horizontal boom reach of 30’ (9.1 m) — the longest in the industry. Featuring our patented PentaBoom™ design, this crane is built for strength and control, and when combined with an IMT Dominator® mechanics truck, creates the ultimate service and maintenance truck.

Standard Features:

  • 30’ (9.1 m) of boom reach
  • Fully proportional “pistol grip” radio remote control
  • Flip sheave boom tip
  • Boom angle -10° to +80° Increased capacity
  • Patented hook stow
  • Patented anti-two-block device
  • Radio remote control receiver

Options:

  • 25’ (7.6 m) or 30′ (9.1 m) of boom reach
  • Boom tip lights

Find a Distributor Request a Quote

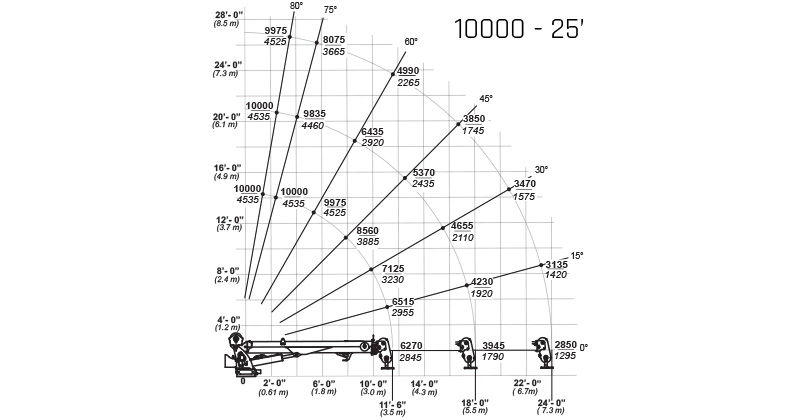

Model10000 (25')
Crane Rating72,000 ft-lb
Crane Weight2,290 lb
Max Lift Capacity10,000 lb
Max. Horizontal Reach24'9 "

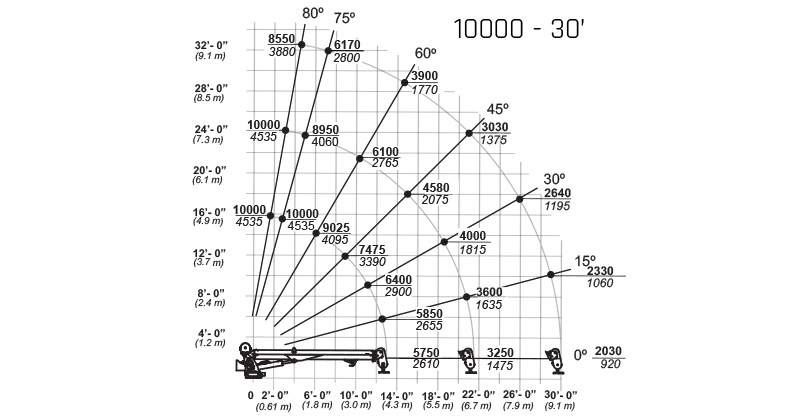

Model10000 (30')
Crane Rating75,000 ft-lb
Crane Weight2,480 lb
Max Lift Capacity10,000 lb
Max. Horizontal Reach30'10 "

IMT Full Line Pocket Brochure
Download

IMT_10000_Crane_DataSheet
Download
