Crane Body

DOMINATOR® II

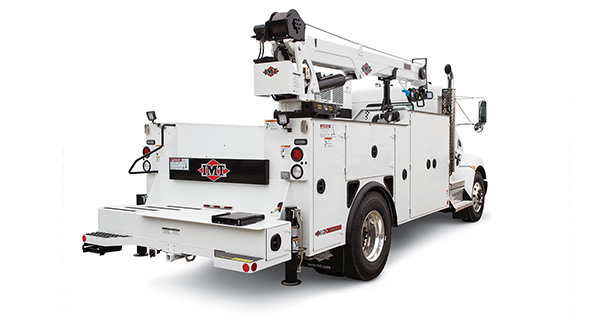

With enhanced strength and stability for higher crane loads, numerous configuration possibilities, and a body rating of 75,000 ft-lb (10.4 tm), the Dominator® II mechanics truck offers exceptional performance in virtually any industry. With the Dominator II mechanics truck, you don’t have to bring your equipment into the shop for service, because the shop comes to you.

Standard features:

  • Body rating — 75,000 ft-lb (10.4 tm)
  • Enhanced strength and stability for higher crane loads
  • Multiplex electrical system with programmable logic
  • 25” (63.5 cm) deep workbench with 3” (7.6 cm) clamp edge and 7.7 cu ft (0.21 m3) of storage

Options:

  • LED Lighting
  • Drawers and drawer sets
  • Standard adjustable shelves
  • 3″H (7.6 cm) divided adjustable shelves
  • Stabilizers — manual and hydraulic
  • Workbench vises and vise plates
  • Energy-absorbing boom support
  • Compartment pressurization system
  • Air systems
  • Telescopic cranes up to 75,000 ft-lb (10.4 tm)

Find a Distributor Request a Quote

ModelDominator II (11')
Body Rating75,000 ft-lb
Body Weight3,722 lb
Body Width96 inches
Storage Capacity142 cu ft
Max. IMT Crane Model10000
ModelDominator II (13')
Body Rating75,000 ft-lb
Body Weight4,205 lb
Body Width96 inches
Storage Capacity179 cu ft
Max. IMT Crane Model10000
ModelDominator II (14')
Body Rating75,000 ft-lb
Body Weight4,439 lb
Body Width96 inches
Storage Capacity197 cu ft
Max. IMT Crane Model10000
*Body weight and storage capacity are estimated based on product configuration.
