Articulating Cranes

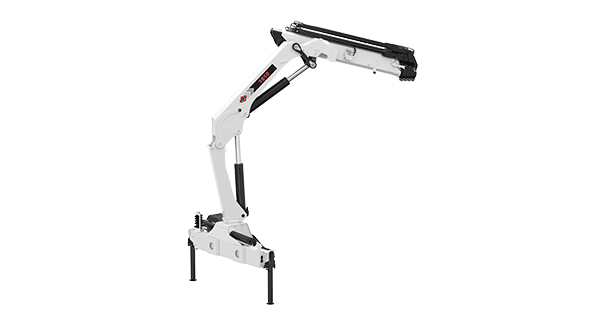

IMT® articulating cranes feature a hexagonal boom design for superior reach and precise control. With a maximum lift capacity of 11,680 lb (5300 kg) for the 14/98 SL model and 12,275 lb (5570 kg) for the 14/98 DL model, these compact cranes have a superior lift-to-weight ratio and can stow within themselves. A perfect addition to your fleet to help get the job done.

Standard features:

  • Application-specific product offering
  • Superior lift-to-weight ratio
  • Long-reach capabilities
  • Hexagonal booms for superior reach and maximum control


  • Various stabilizer configurations
  • Double link arm system
  • Boom mounted winch
  • Floodlight on outer boom
  • Boom tip functions for hydraulic attachments
  • Oil cooler Electronic Vehicle Stability (EVS) System

Find a Distributor Request a Quote

Model14/98 SL
Crane Rating103,220 ft-lb
Crane Weight4,275 lb
Max Lift Capacity11,680 lb
Max. Horizontal Reach56'8 "
Model14/98 DL
Crane Rating102,498 ft-lb
Crane Weight4,390 lb
Max Lift Capacity12,275 lb
Max. Horizontal Reach56'8 "
