Hydraulic Cranes

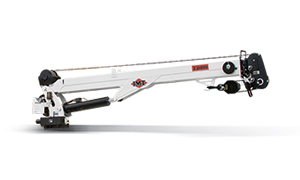

Let our telescopic cranes take on the heavy lifting. The IMT 14000 Series telescopic crane has a maximum lifting capacity of 14,000 lb (6350.3 kg) and a horizontal boom reach of 30’ 1” (9.2 m) — the longest in the industry. Featuring the Penta Boom design, this crane is built for strength and control, and when combined with an IMT Dominator® mechanics truck, creates the ultimate service and maintenance truck. With IMT® CMD.CTRL™, you are fully equipped to handle crane and body operation remotely.

Standard features:

  • 30’ (9.1 m) of boom reach
  • Fully proportional “pistol grip” radio remote control
  • Flip sheave boom tip
  • Boom angle -10° to +80°
  • Increased capacity
  • Patented hook stow
  • Patented anti-two-block device
  • Radio remote control receiver


  • 25’ (7.6 m) or 30′ (9.1 m) of boom reach
  • Boom tip lights

Find a Distributor Request a Quote

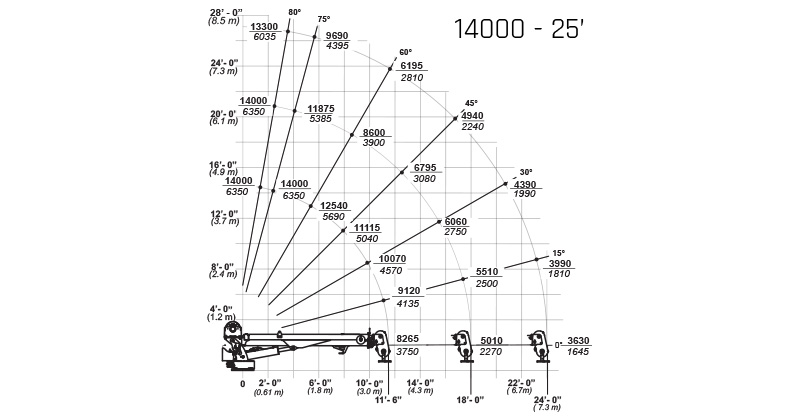

Model14000 (25')
Crane Rating95,000 ft-lb
Crane Weight3,100 lb
Max Lift Capacity14,000 lb
Max. Horizontal Reach24'5 "

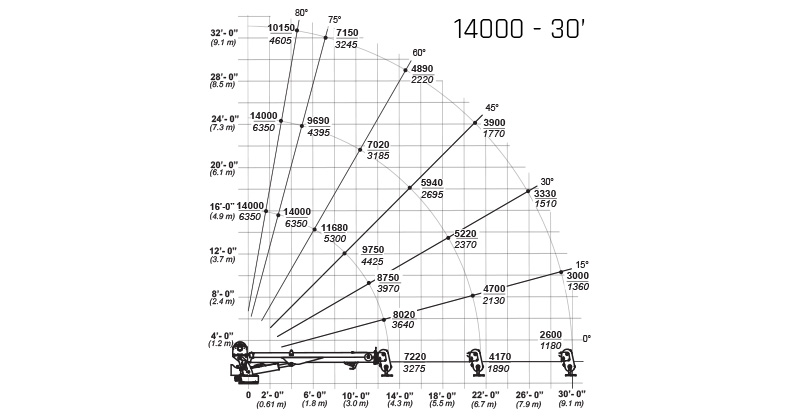

Model14000 (30')
Crane Rating94,000 ft-lb
Crane Weight3,280 lb
Max Lift Capacity14,000 lb
Max. Horizontal Reach31'0 "
