Electric Cranes

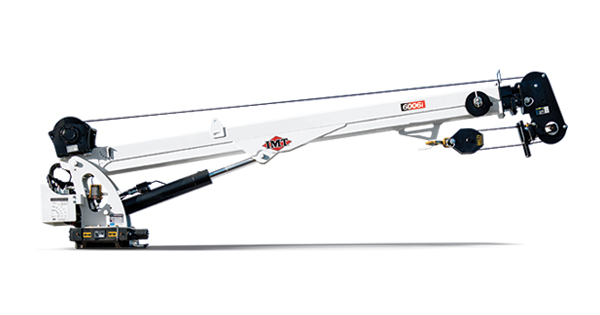

Let our telescopic cranes take on the heavy lifting. The IMT® 6006i Series telescopic crane has a
maximum lifting capacity of 6006 lb (2724.3 kg) and the longest horizontal boom reach in the industry at 22’ (6.7 m). Featuring the Penta Boom design, this crane is built for strength and control. Combine it with an IMT Dominator® mechanics truck, to create the ultimate service and maintenance truck.

Standard features:

  • Planetary winches
  • Non-proportional tethered remote control
  • Electrical operating systems
  • Anti-two-block protection
  • Overload shutdown protection
  • Boom angle -5° to +75° (-0.1 to 1.3 rad)


Find a Distributor Request a Quote

Model6006i (22')
Crane Rating38,000 ft-lb
Crane Weight1,450 lb
Max Lift Capacity6,000 lb
Max. Horizontal Reach22'0 "

6006i_20180227 PARTS_(24v)

6006i_20180227 PARTS_(12v)

IMT Full Line Pocket Brochure
