Electric Cranes

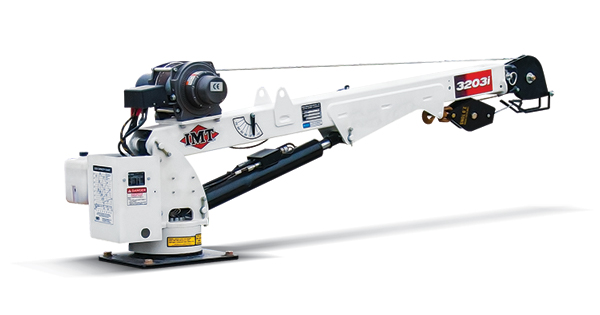

3203i

Small but mighty, the compact 3203i telescopic crane is the perfect addition to your mechanics truck fleet. This little crane can do the heavy lifting for you with a lifting capacity of 3203 lb (1453 kg) and a maximum horizontal reach of 15 feet (4.6 m). The 3203i requires minimal mounting space, which helps make more room for your payload.

Standard features:

  • 12,000 ft-lb (1.6 m)
  • Arc suppression for longer electrical contractor life
  • Planetary winches
  • On-Off tethered remote control
  • Electrical operating systems
  • Anti-two-block protection
  • Overload shutdown protection
  • 25’ (7.6 m) power cable
  • 25’ (7.6 m) remote control pendant
  • Boom angle -5° to +75°

Options:

  • On-Off radio remote control
  • Single proportional radio remote control

Find a Distributor Request a Quote

Model3203i (15')
Crane Rating12,000 ft-lb
Crane Weight635 lb
Max Lift Capacity4,000 lb
Max. Horizontal Reach15'0 "
