Hydraulic Cranes

7500

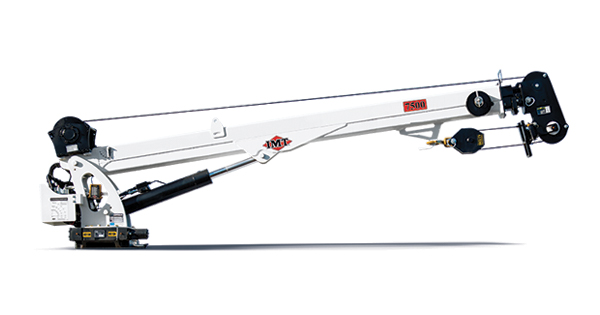

Let our telescopic cranes take on the heavy lifting. The IMT 7500 Series telescopic crane has a maximum lifting capacity of 7500 lb (3401.9 kg) and a horizontal boom reach of 30’ (9.1 m) — the longest in the industry. Featuring our patented PentaBoom design, this crane is built for strength and control, and when combined with an IMT Dominator® mechanics truck, creates the ultimate service and maintenance truck.

Standard features:

  • 30’ (9.1 m) of boom reach
  • Fully proportional “pistol grip” radio remote control
  • Flip sheave boom tip
  • Boom angle -10° to +80°
  • Increased capacity Patented hook stow
  • Patented anti-two-block device
  • Radio remote control receiver

Options:

  • 22’ (6.7 m) or 30′ (9.1 m) of boom reach
  • Boom tip lights

Find a Distributor Request a Quote

Model7500 (22')
Crane Rating47,000 ft-lb
Crane Weight1,795 lb
Max Lift Capacity7,500 lb
Max. Horizontal Reach22'0 "

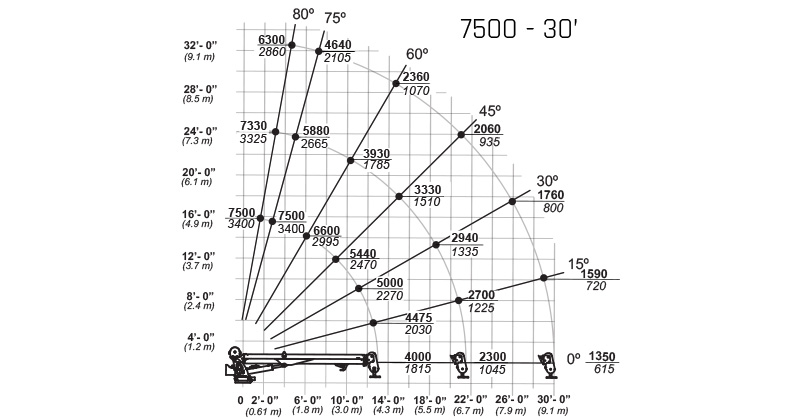

Model7500 (30')
Crane Rating52,000 ft-lb
Crane Weight2,400 lb
Max Lift Capacity7,500 lb
Max. Horizontal Reach30'10 "

IMT Full Line Pocket Brochure
Download

IMT_7500_Crane_DataSheet
Download
