Articulating Cranes


IMT® articulating cranes have hexagonal boom design for superior reach and precise control. With a maximum lift capacity of 10,626 lb (4820 kg) for the 12/86 SL (Single Link) model and 10,670 lb (4840 kg) for the 12/86 DL (Dual Link) model, these compact cranes have a superior lift-to-weight ratio and can stow within themselves, a perfect addition to your fleet to help get the job done.

Standard features:

  • Application-specific product offering
  • Superior lift-to-weight ratio
  • Long-reach capabilities
  • Hexagonal booms for superior reach and maximum control
  • Internal hose routing
  • 15° overbending on outer boom


  • Various stabilizer configurations
  • Double link arm system
  • Boom mounted winch
  • Floodlight on outer boom
  • Boom tip functions for hydraulic attachments
  • Oil cooler
  • Electronic Vehicle Stability (EVS) System

Find a Distributor Request a Quote

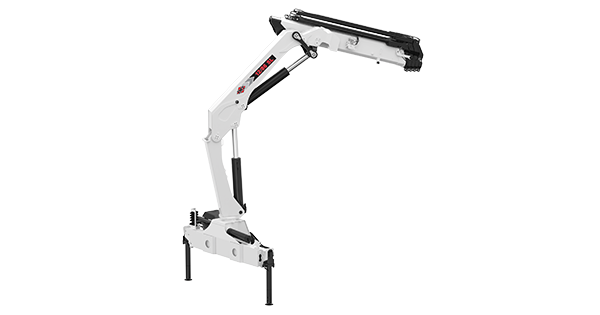

Model12/86 SL
ControlsRadio Control (RC)
Crane Rating89,505 ft-lb
Crane Weight2,381 lb
Max Lift Capacity10,626 lb
Max. Horizontal Reach49'2 "

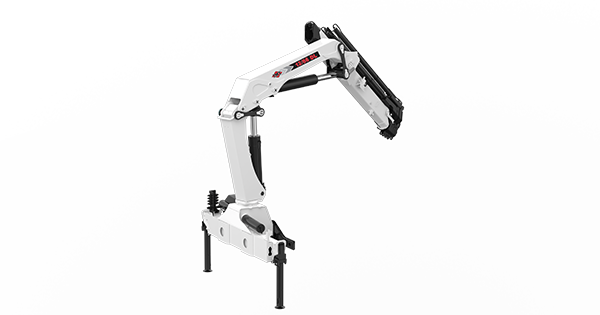

Model12/86 DL
ControlsRadio Control (RC)
Crane Rating88,953 ft-lb
Crane Weight2,458 lb
Max Lift Capacity10,670 lb
Max. Horizontal Reach49'2 "
